| Engine make | TATA |
| Engine model | 697 TCIC (Euro 2) |
| Capacity (cc) | 5675 |
| Layout | Diesel inline 6 |
| Engine type | Turbo intercooled |
| Power kw at r/min | 118 @ 2400 |
| Torque Nm at r/min | 550 @ 1500 |
| Transmission make / model | GBS – 600 |
| Transmission type | Synchromesh |
| Shift | Manual |
| No. of gears forward | 6 |
| First gear ratio | 6.58 |
| Top gear ratio | 0.77 |
| Overall height | 2473 |
| Overall length (mm) | 8335 |
| Max width (mm) | 2270 |
| Front overhang | 1275 |
| Rear overhang | 2285 |
| Wheelbase (mm) | 4830 |
| CA – cab to bogie / rear axle (mm) | 3875 |
| GVM (kg) | 11500 |
| V (kg) | 11500 |
| GCM (kg) | 14900 |
| D/T (kg) | 14900 |
| Permissible body & payload (kg) | 7490 |
| Tare – total (T) (kg) | 4010 |
| Permissible rear axle weight (kg) | 7500 |
| Permissible front axle weight (kg) | 4000 |
| Manufacturer’s rear axle weight (kg) | 7500 |
| Manufacturer’s front axle weight (kg) | 4000 |
| Clutch type | Single |
| Diameter (mm) | 352 |
| Reduction type | Single |
| Final ratio | 5.285 |
| Brakes type | Full air dual |
| Front | Drums |
| Rear | Drums |
| Anti-lock braking-system (ABS) | Yes |
| Fuel tank capacity (Ltrs) | 160 |
| Size & ply rating | 8.25R20 – 14PR |
Alt No :
082 927 6607
Alt No :
083 377 9324
Call Us :
011 474 2138/9
CNR Main Reef / Link Roads, Langlaagte, Johannesburg

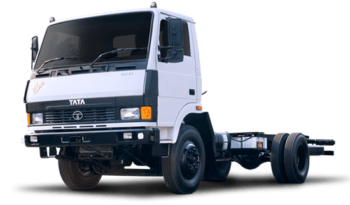

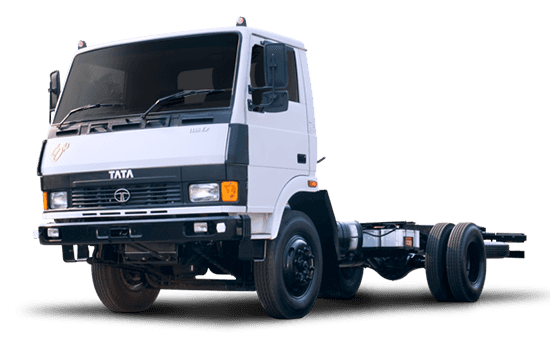

LPT 1216 4X2 Freight Carrier
LPT 1216 4X2 Freight Carrier
Contact Information
Please do not hesitate to contact us if you have any questions regarding this vehicle.
