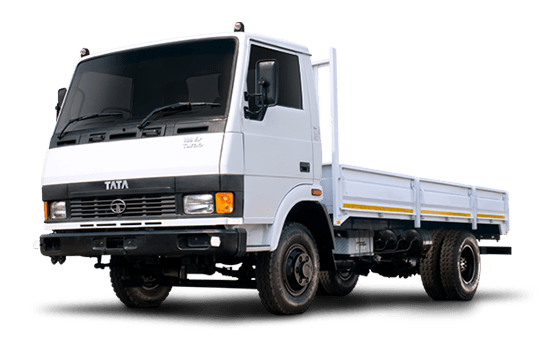

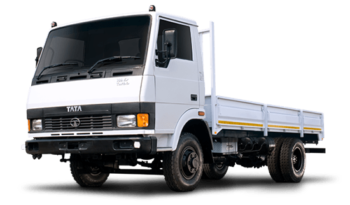

LPT 813 EX2 4X2 Freight Carrier

LPT 813 EX2 4X2 Freight Carrier

Engine make TATA
Engine model 679 TCIC (Euro 2)
Capacity (cc) 5675
Layout Diesel inline 6
Engine type Turbo intercooled
Power kw at r/min 95 @ 2400
Torque Nm at r/min 416 @ 1400 – 1700
Transmission make / model GBS 40
Transmission type Synchromesh
Shift Manual
No. of gears forward 5
First gear ratio 7.51
Top gear ratio 1
Overall height 2341
Overall length (mm) 6860
Max width (mm) 2155
Front overhang 1275
Rear overhang 2100
Wheelbase (mm) 3800
CA – cab to bogie/ rear axle (mm) 3475
GVM (kg) 8050
V (kg) 8050
GCM (kg) 10050
D/T (kg) 10050
Permissible body & payload (kg) 4990
Tare – total (T) (kg) 3060
Permissible rear axle weight (kg) 5060
Permissible front axle weight (kg) 2990
Manufacturer’s rear axle weight (kg) 5060
Manufacturer’s front axle weight (kg) 2990
Clutch type Single
Diameter (mm) 310
Reduction type Single
Final ratio 3.11
Brakes type Full air dual
Front Drums
Rear Drums
Anti-lock braking-system (ABS) Yes
Fuel tank capacity (Ltrs) 120
Size & ply rating 7.50R16 – 14PR
