| Engine make | TATA Cummins |
| Engine model | 6BTAA 5.9TC (Euro 3) |
| Capacity (cc) | 5883 |
| Layout | Diesel inline 6 |
| Engine type | Turbo intercooled |
| Power kw at r/min | 108 @ 2500 |
| Torque Nm at r/min | 590 @ 1500 |
| Transmission make / model | GBS 600 |
| Transmission type | Synchromesh |
| Shift | Manual |
| No. of gears forward | 6 |
| First gear ratio | 6.58 |
| Top gear ratio | 0.77 |
| Overall height | 2850 |
| Overall length (mm) | 5616 |
| Max width (mm) | 2145 |
| Front overhang | 1431 |
| Rear overhang | 960 |
| Wheelbase (mm) | 3225 |
| CA – cab to bogie / rear axle (mm) | 3091 |
| GVM (kg) | 7650 |
| V (kg) | 7750 |
| GCM (kg) | 10250 |
| D/T (kg) | 10250 |
| Permissible body & payload (kg) | 3310 |
| Tare – total (T) (kg) | 4340 |
| Permissible rear axle weight (kg) | 4000 |
| Permissible front axle weight (kg) | 3750 |
| Manufacturer’s rear axle weight (kg) | 4000 |
| Manufacturer’s front axle weight (kg) | 3750 |
| Clutch type | Single |
| Diameter (mm) | 352 |
| Reduction type | Single |
| Final ratio | 5.857 |
| Brakes type | Full air dual |
| Front | Drums |
| Rear | Drums |
| Anti-lock braking-system (ABS) | Yes |
| Fuel tank capacity (Ltrs) | 200 |
| Size & ply rating | 12.00 X 20-18PR |
Alt No :
082 927 6607
Alt No :
083 377 9324
Call Us :
011 474 2138/9
CNR Main Reef / Link Roads, Langlaagte, Johannesburg

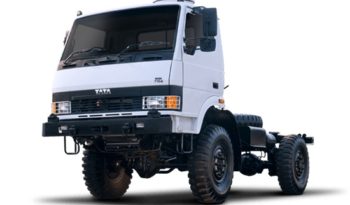

LPTA 715 4X4 Freight Carrier
